Setup Guide

Configure Synaptic AI Pro with one-touch setup or manual configuration

Requirements

Before you begin, make sure you have the following installed:

•Node.js 18.0+ - Node.js 18.0+ required to run the MCP server (download from nodejs.org)
•Unity 2020.3 or later
•Claude Desktop / VS Code / Cursor

Recommended: One-Touch Setup

v1.0.3+ includes automatic configuration for Claude Desktop, Cursor, and VS Code. Manual setup is available below if needed.

One-Touch Setup (Recommended)

Automatic configuration for all AI tools in one click

Video guide for setup steps

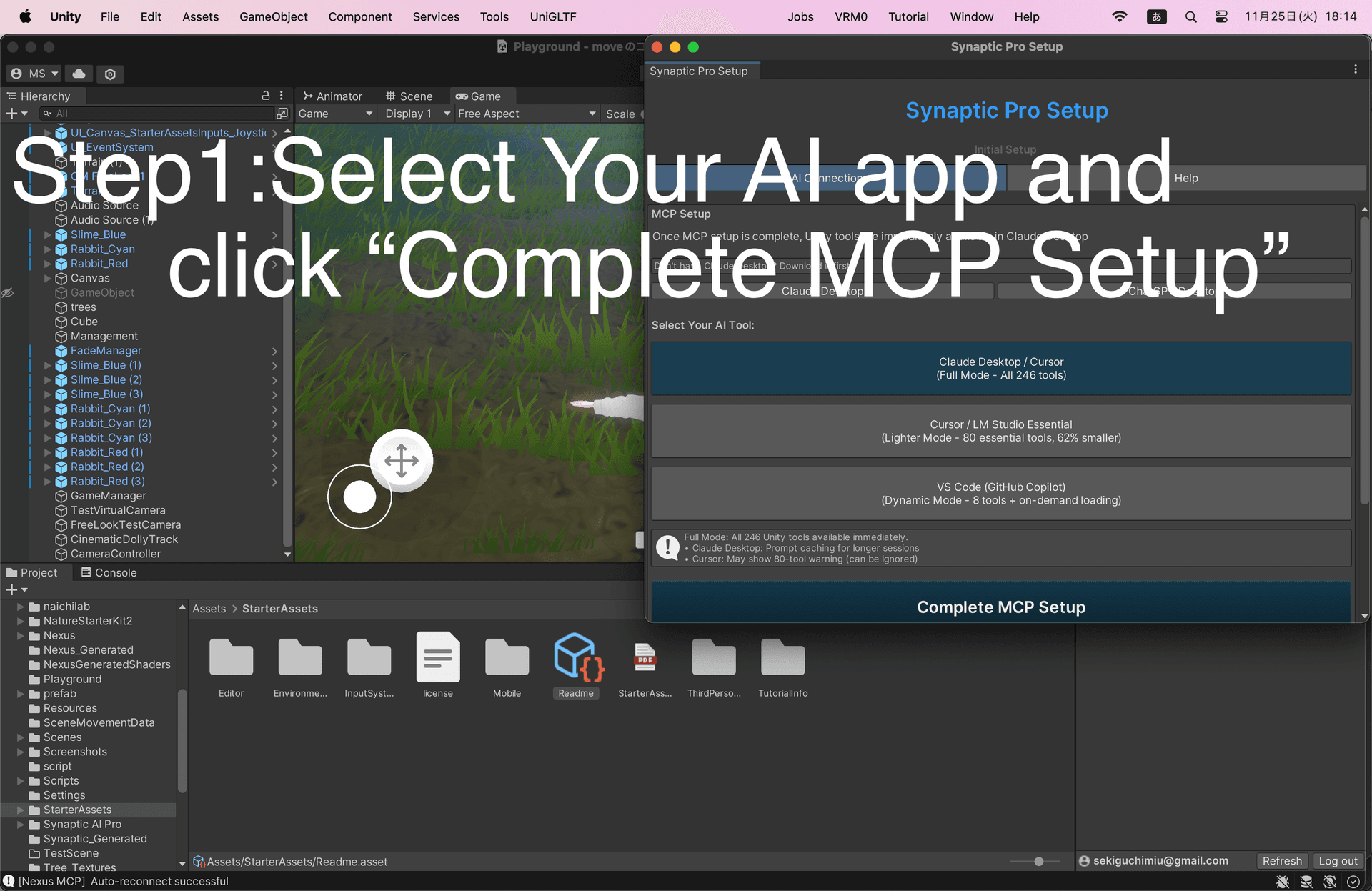

Step 1: Select Your AI app and click Complete MCP Setup

Click to expand

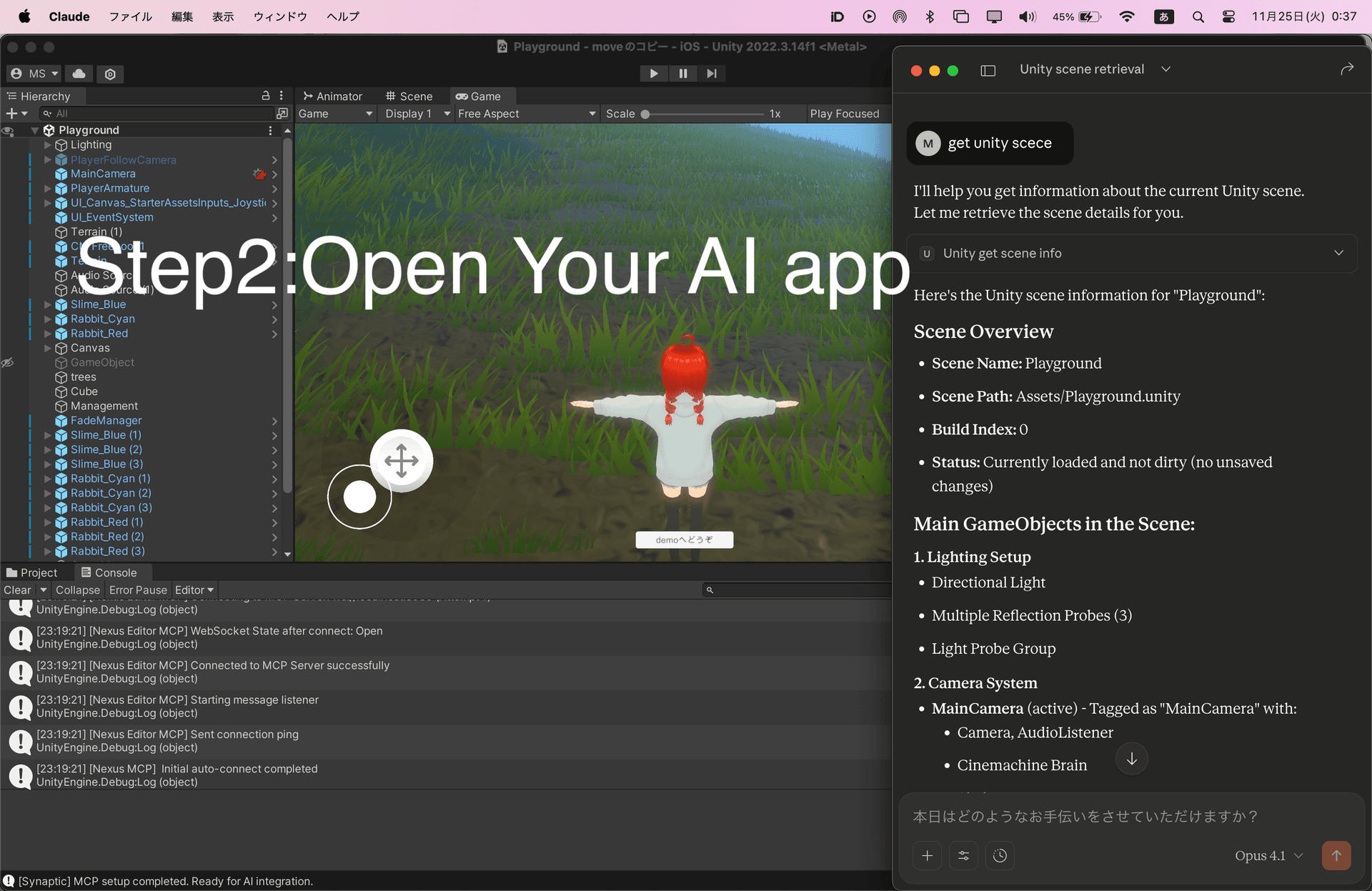

Step 2: Open Your AI app and start using

Click to expand

Step 1: Step 1: Open Setup Window

Unity → Tools → Synaptic Pro → Synaptic Setup

Step 2: Step 2: Select AI Tool and Click 'Complete MCP Setup'

Select the AI tool you want to use

This will automatically configure MCP for all detected AI tools

Step 3: Step 3: Launch/Restart AI App

Launch or restart your AI app (Claude Desktop / VS Code / Cursor)

Automatically Configured:

Claude Desktop
Cursor (~/.cursor/mcp.json)
VS Code (.vscode/mcp.json)

Smart Merge: Existing MCP servers are preserved. Only unity-synaptic is added/updated.

Note: Restart/Reload your AI tool after setup to activate Unity MCP

Additional Step for VS Code Users

VS Code requires manual server start after one-touch setup:

1.Complete the one-touch setup above (Complete MCP Setup button)
2.Open your Unity project folder in VS Code
3.Click the MCP icon in the left sidebar (second from bottom)
4.Find 'unity-synaptic' in the MCP servers list
5.Click the settings icon and select 'Start Server'

💡 Tip: VS Code does not automatically start MCP servers. You need to manually start the server each time you open the project.

Manual Setup (Advanced)

If you prefer to configure manually or need project-specific setup:

Claude Code (VS Code)

1. Open MCP Configuration

Press the keyboard shortcut to open the command palette and search for MCP configuration:

Cmd/Ctrl + Shift + P → "MCP: Open User Configuration"

2. Add Configuration (User Level)

Add this configuration for global access across all projects:

{
  "mcpServers": {
    "unity-synaptic": {
      "command": "node",
      "args": [
        "/FULL/PATH/TO/YOUR/Unity_Project/Assets/Synaptic AI Pro/MCPServer/index.js"
      ]
    }
  }
}

3. Alternative: Workspace Configuration

Or create .vscode/mcp.json in your project root for project-specific setup:

{
  "mcpServers": {
    "unity-synaptic": {
      "command": "node",
      "args": [
        "${workspaceFolder}/Assets/Synaptic AI Pro/MCPServer/index.js"
      ]
    }
  }
}

4. Reload VS Code

Cmd/Ctrl + Shift + P → "Reload Window"

Cursor

1. Create Configuration File

Edit or create the MCP configuration file:

~/.cursor/mcp.json

2. Add Configuration

Add the following configuration:

{
  "mcpServers": {
    "unity-synaptic": {
      "command": "node",
      "args": [
        "/FULL/PATH/TO/YOUR/Unity_Project/Assets/Synaptic AI Pro/MCPServer/index.js"
      ]
    }
  }
}

3. Reload MCP Servers

Settings → MCP Servers → Reload

Path Examples

macOS:

/Users/yourname/UnityProjects/MyGame/Assets/Synaptic AI Pro/MCPServer/index.js

Windows:

C:\Users\yourname\UnityProjects\MyGame\Assets\Synaptic AI Pro\MCPServer\index.js

Workspace Variable (works anywhere):

${workspaceFolder}/Assets/Synaptic AI Pro/MCPServer/index.js

Important: Use the full absolute path, not relative paths.

Test Your Setup

Try these commands to verify the connection:

• "List all GameObjects in the Unity scene"
• "Create a red cube at position (0, 5, 0)"

Troubleshooting

Node.js Not Installed

Check if Node.js is installed by running this command in your terminal:

node --version

• If you see 'command not found', download Node.js from nodejs.org
• After installing, restart your computer
• Try the setup again after Node.js is installed

Not working?

• Reload your IDE
• Check Output panel for errors
• Make sure Unity is running first
• Double-check the path is correct

Command not found: node?

• Install Node.js from nodejs.org
• Restart IDE after installing
